1. Install the master cylinder and hydraulic block (20).

2. Install the master cylinder piston (19).

3. Install the power piston (18).

4. Install the brake booster inner plug (17).

5. Install the spring ring (16).

6. Install the brake booster mount.

7. Install the dust cover (15).

8. Install the earring (14).

9. Install the pump (13).

10. Install the bracket (12).

11. Install the wire (11).

12. Install the brake booster inner clamp (10).

13. Install the tube (9).

14. Install the hose (8).

15. Install the muffler tube (7).

16. Install the spring (6).

17. Install the sealing ring (5).

18. Install the battery (4).

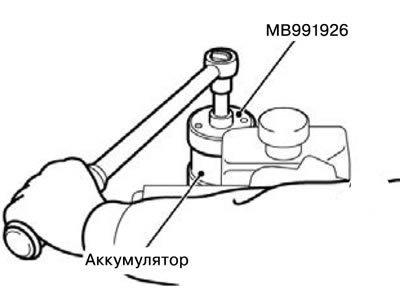

Note: Use special wrench MB991926 to install the battery.




19. Install the washer (3).

20. Install the expansion tank (2).

21. Install the filler cap (1).
