Disassembling the brake booster (Mitsubishi Pajero 4)

  • Home
  • Pajero
  • 4 (2006-2021)
  • Chassis and running gear
  • Brake system
  • Disassembling the brake booster
0

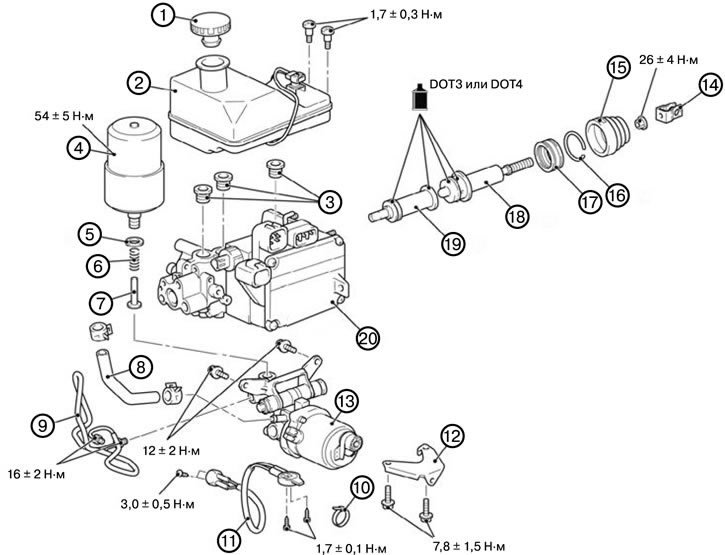

1. Remove the filler cap (1).

2. Remove the expansion tank (2).

3. Remove the washer (3).

4. Remove the battery (4).

5. Remove the sealing ring (5).

6. Remove the spring (6).

7. Remove the muffler tube (7).

8. Remove the hose (8).

9. Pick up the handset (9).

10. Remove the inner clamp of the brake booster (10).

11. Remove the wire (11).

12. Remove the bracket (12).

13. Remove the pump (13).

14. Remove the earring (14).

15. Remove the boot (15).

16. Remove the brake booster mount.

17. Remove the spring ring (16).

18. Remove the inner plug of the brake booster (17).

19. Remove the power piston (18).

20. Remove the master cylinder piston (19).

21. Remove the master cylinder and hydraulic block (20).
