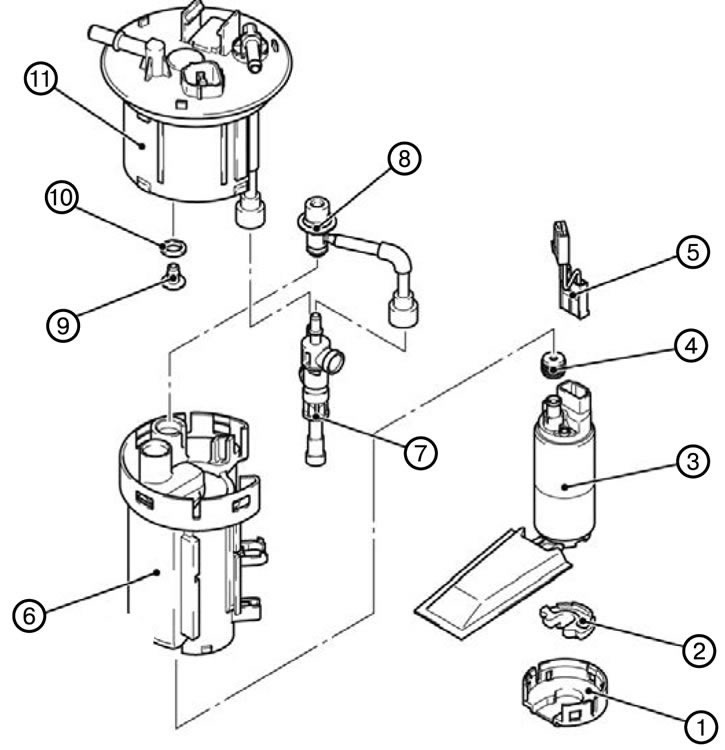

Removal the fuel pump
1. Relieve fuel pressure in fuel hoses and pipes (gasoline engines).
2. Remove the fuel pump bracket (1).
3. Remove the fuel pump cushion (2).
4. Remove the fuel tank fuel pump assembly (3).
Information copied from the website MitsubishiMan
5. Remove the washer (4).
6. Remove the fuel pump wiring (5).
7. Remove the housing (b).
8. Remove the auxiliary pump (7).
9. Remove the pressure regulator (8).
10. Remove the cover (9).
11. Remove the sealing ring (10).
12. Remove the fuel tank filter (11).
Installing a fuel pump
1. Install the fuel tank filter (11).
2. Install the sealing ring (10).
3. Install the cover (9).
4. Install the pressure regulator (8).
5. Install the auxiliary pump (7).
6. Install the housing (6).
7. Install the fuel pump wiring (5).
8. Install the washer (4).
9. Install the fuel tank fuel pump assembly (3).
10. Install the fuel pump cushion (2).
11. Install the fuel pump bracket (1).
