Removal
- Drain the fluid from the clutch hydraulic drive.
- On a left-hand drive vehicle, remove the relay box and activated carbon canister.
- Remove the cotter pin, washer and pin securing the clutch cylinder pushrod to the clutch pedal (Fig. 11.9).

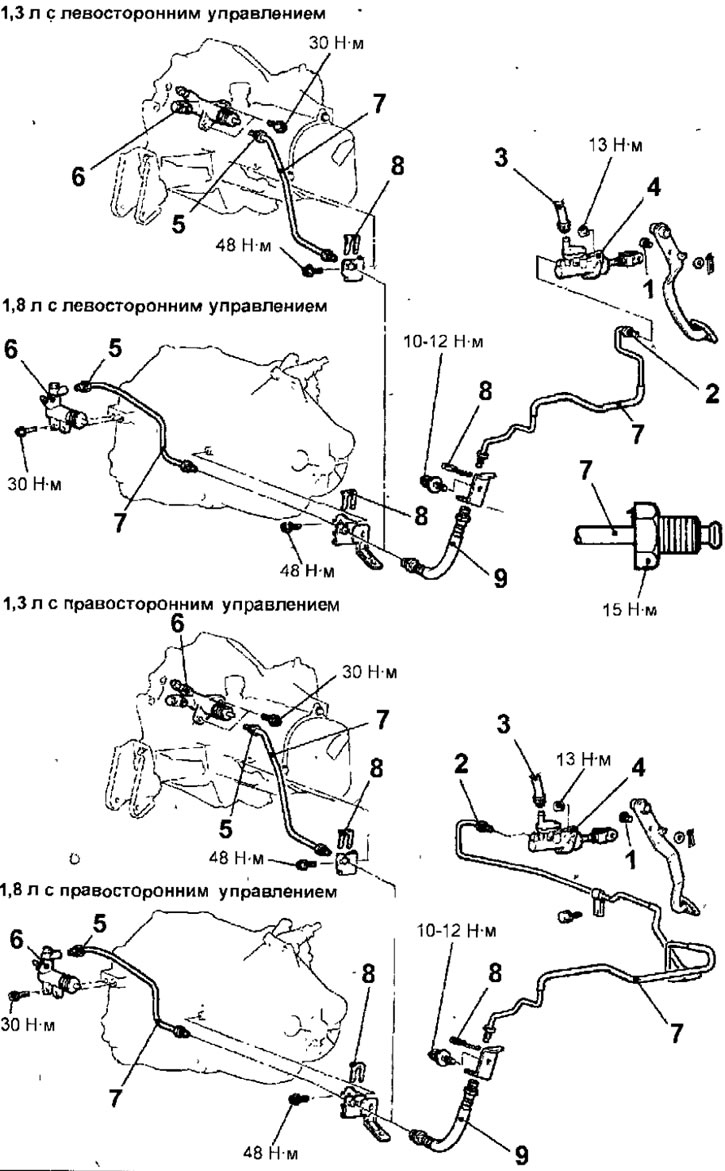

Fig. 11.9. Hydraulic clutch drive on cars with gasoline engines: 1 - pin; 2 - connecting nut; 3 - hose; 4 - clutch master cylinder; 5 - connecting nut; 6 - working cylinder of the cordon;7 - tube; 8 - hose fastening clamp; 9 - hose
- Loosen the union nut and disconnect the pipe from the clutch master cylinder.
- Loosen the nuts and remove the clutch master cylinder.
- Loosen the union nut and disconnect the tube from the clutch slave cylinder.
- Remove the bolts and the clutch slave cylinder.
- Remove the clamps and remove the clutch hydraulic hose.
Installation
- Installation is carried out in the reverse order of removal.
- Before installation, lubricate the bushing, washer and pin.
- When installing, use a new cotter pin to secure the pin.
- Before installation, lubricate the clutch slave cylinder push rod with MITSUBISHI Part # 0101011 grease (Fig. 11.10).

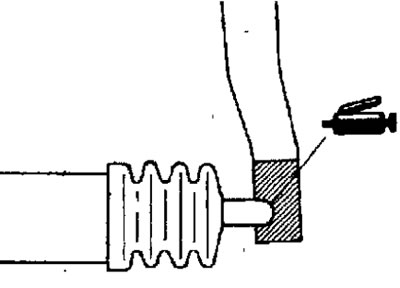

Fig. 11.10. Lubrication point of the clutch slave cylinder pusher
- Fill the fluid and bleed the air from the hydraulic clutch drive.
- Adjust the position of the clutch pedal.
